Multi-agent Text-to-SQL v2.8

From plain English
to business insights in seconds.

Ask a question in plain language. NexusSQL writes the SQL, runs it, and hands back the answer with a chart. Every query also gets a score from SQLAS, so you know which results to rely on.

Get started → ⭐ Star on GitHub

bash: install sqlas

$pip install sqlas

✓ installed sqlas (SQL Agent Scoring Framework)

$pip install "sqlas[mlflow]" # + MLflow tracing

$pip install "sqlas[ui]" # + Streamlit dashboard

$pip install "sqlas[all]" # everything

bash: run NexusSQL

$git clone https://github.com/thepradip/NexusSQL.git

$cd NexusSQL

$cp backend/.env.example backend/.env # add Azure OpenAI keys

$docker compose up --build

✓ viz :8011 · backend :8000 · UI :80 → http://localhost

50+

Eval metrics

Reasoning modes

Microservices

140

Tests passing

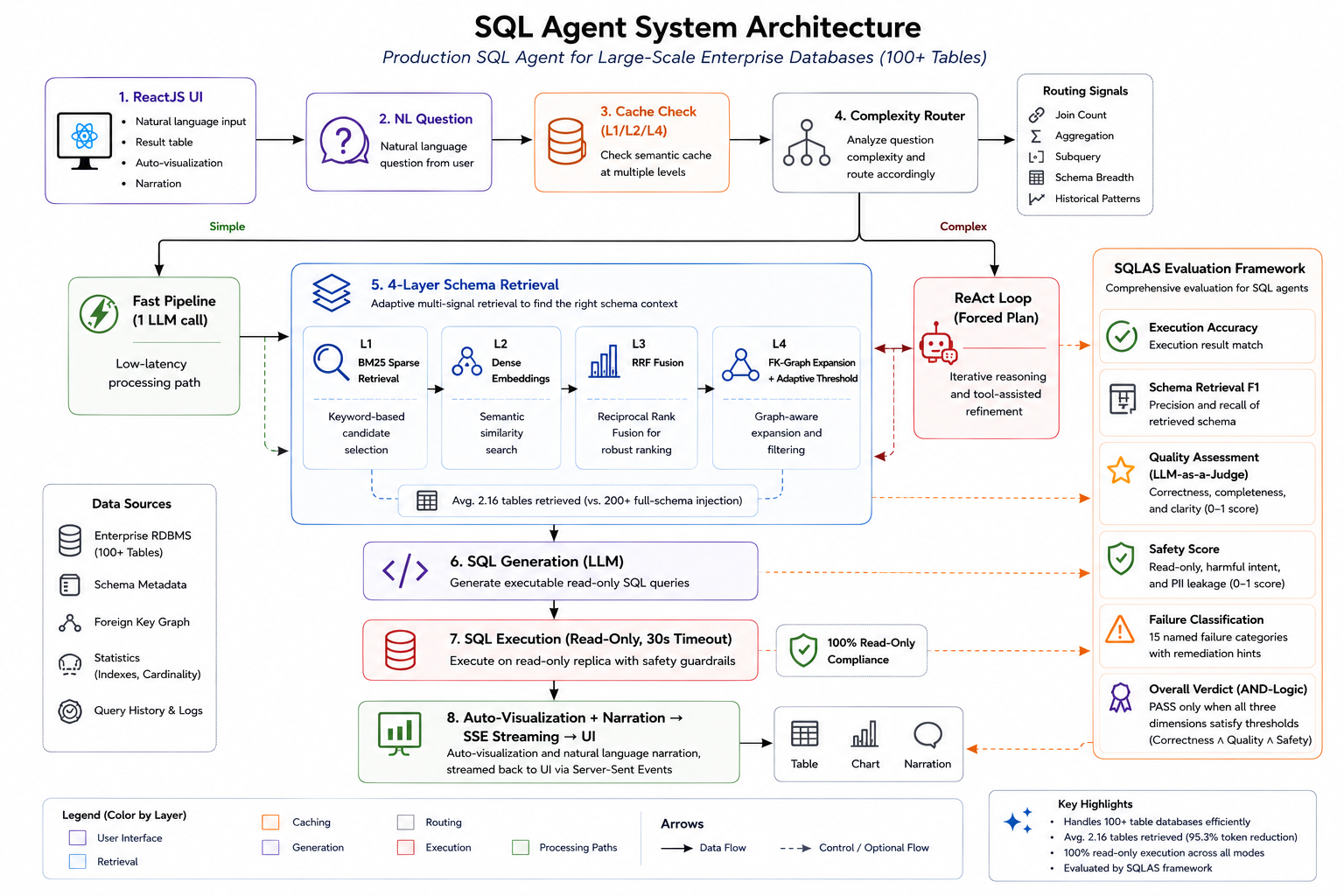

Two halves of one system

One part answers questions. The other grades the answers.

Both live in the same repo, so you can measure how good the answers really are.

AGENT NexusSQL

The engine. It turns a question into SQL, runs it, and explains the result with a chart. Every step is traced.

✦ Pipeline & agentic (ReAct) reasoning modes
✦ Finds the right tables in large databases
✦ A separate service that picks the chart
✦ Per-tenant access control and row filters
✦ MLflow tracing and query caching

EVAL SQLAS

The scorer. A small library that grades how well a SQL agent did its job. Install it with pip install sqlas.

✦ 50+ metrics across correctness, quality & safety
✦ Tells you why a query failed, not just that it did
✦ Three-dimension PASS/FAIL verdicts
✦ Spider / BIRD benchmark runners
✦ Guardrails, prompt versioning & judge caching

Features

What it does in production

Each question is answered, cached, and checked for safety before you see the result.

🧠

Multi-agent reasoning

Run a quick single pass, or let the agent plan, check the schema, and fix its own mistakes as it goes.

🔎

Schema-aware retrieval

Big database? It finds the tables that matter and leaves the rest out of the prompt.

📊

Auto visualization

A separate service picks the chart, whether that's a bar, a line, or just a number. It runs on the side and never slows an answer down.

🛡️

Guardrails & safety

It blocks writes, catches SQL and prompt injection, and checks for exposed PII. No LLM call needed.

⚡

Production caching

It caches both the questions and their results. You can see the hit rate and how many tokens it saved.

📡

MLflow observability

Every query is logged: how long it took, how complex the SQL was, and whether the user liked the answer.

🏢

Multi-tenant

Each tenant gets its own table access and row filters. Nobody sees data that isn't theirs.

🌊

Streaming

Watch each step show up in the UI as it runs, over a simple SSE stream.

🎯

Drift monitoring

An endpoint that warns you when answer quality starts to slip.

Quickstart

Running in three steps

Docker brings up all three services in dependency order. Open http://localhost and you're live.

Clone

Grab the repo and step in.

Configure

Copy .env.example → .env and add your Azure OpenAI keys.

Launch

One docker compose command starts everything.

bash

# 1. Clone
git clone https://github.com/thepradip/NexusSQL.git
cd NexusSQL

# 2. Set credentials
cp backend/.env.example backend/.env
# edit backend/.env: AZURE_OPENAI_ENDPOINT, AZURE_OPENAI_API_KEY, AZURE_OPENAI_DEPLOYMENT_NAME

# 3. Start everything (viz → backend → frontend)
docker compose up --build

Container	Port	Role
ariasql-visualization	8011	Chart inference microservice
ariasql-backend	8000	SQL AI agent API + MLflow
ariasql-frontend	80	React UI

bash

# Starts all three services:
# visualization (8011) → backend (8000) → frontend dev (5173)
bash start.sh

manual

python -m uvicorn services.visualization_service.app:app --host 127.0.0.1 --port 8011
cd backend && uvicorn main:app --port 8000
cd frontend && npm run dev

API

One endpoint, complete answers

POST /query gives you the SQL, the data, a written answer, a chart, and timing. Full docs live at /docs.

curl

curl -X POST http://localhost:8000/query \
  -H "Content-Type: application/json" \
  -d '{"query": "How many patients were admitted last month?"}'

response.json

{
  "sql": "SELECT COUNT(*) FROM admissions WHERE ...",
  "data": { "columns": ["count"], "rows": [[142]], "row_count": 1 },
  "response": "142 patients were admitted last month.",
  "visualization": { "type": "number", "number_value": 142, "number_label": "Count" },
  "agent_mode": "pipeline",
  "metrics": { "total_latency_ms": 1240, "cache_hit": false }
}

curl: ReAct loop

curl -X POST http://localhost:8000/query \
  -H "Content-Type: application/json" \
  -d '{
        "query": "Which departments have the highest readmission rates?",
        "force_agentic": true
      }'

# → plan → describe tables → execute SQL → self-correct → answer

Method	Endpoint	Description
GET	/health	Service health + table list
GET	/schema	Full database schema
POST	/query/stream	SSE streaming, stages in real time
POST	/feedback	Thumbs up/down on a trace
GET	/cache/stats	Cache hit rate, tokens saved
POST	/export/csv	Download results as CSV
POST	/database/test	Test a new database connection
GET	/drift/status	Production drift monitoring status

SQLAS, the evaluation framework

Score every query across 50+ metrics

A RAGAS-style library for SQL agents. It lines up with the Spider, BIRD, RAGAS, and MLflow standards. pip install sqlas

quickstart.py

from sqlas import evaluate

def llm_judge(prompt: str) -> str:
    return openai_client.chat.completions.create(
        model="gpt-4o", messages=[{"role": "user", "content": prompt}]
    ).choices[0].message.content

scores = evaluate(
    question      = "How many active users?",
    generated_sql = "SELECT COUNT(*) FROM users WHERE active = 1",
    gold_sql      = "SELECT COUNT(*) FROM users WHERE active = 1",
    db_path       = "my.db",
    llm_judge     = llm_judge,
    response      = "There are 1,523 active users.",
)

print(scores.overall_score)        # 0.95
print(scores.verdict)              # PASS
print(scores.hardness)             # "easy"
print(scores.to_markdown_report()) # paste into a PR comment

three_dimension.py

from sqlas import evaluate_correctness, evaluate_quality, evaluate_safety

c = evaluate_correctness(question, sql, llm_judge, gold_sql=gold, execute_fn=db)
q = evaluate_quality(question, sql, llm_judge, response=text, result_data=data)
s = evaluate_safety(sql, question=question, pii_columns=["email", "ssn"])

print(c.score, c.verdict)   # 0.85  PASS   (threshold 0.5)
print(q.score, q.verdict)   # 0.72  PASS   (threshold 0.6)
print(s.score, s.verdict)   # 0.45  FAIL   (PII detected, threshold 0.9)

# PASS only when ALL THREE dimensions clear their thresholds.
# evaluate_safety() makes zero LLM calls: pure regex + sqlglot AST.

failure_analysis.py

from sqlas import classify_failure

analysis = classify_failure(
    sql     = "SELECT id FROM users LIMIT 100",
    scores  = {"execution_accuracy": 1.0, "row_count_match": 0.12},
    details = {"row_count_match": {"pred_count": 100, "gold_count": 839}},
)

print(analysis.primary)    # FailureCategory.LIMIT_TRUNCATION
print(analysis.top_hint()) # "Remove LIMIT, the question asks for full results, not top-N"

LIMIT_TRUNCATIONWRONG_TABLEWRONG_AGGREGATION ROW_EXPLOSIONSCHEMA_HALLUCINATIONFULL_TABLE_SCAN UNSAFE_QUERYNULL_IN_AGGREGATIONJOIN_WITHOUT_FK FAITHFULNESS_DROP+ more

suite.py

from sqlas import run_suite, generate_report, WEIGHTS_V4, build_schema_info

tables, columns = build_schema_info(db_path="my.db")

results = run_suite(
    test_cases     = test_cases,
    agent_fn       = my_agent,
    llm_judge      = llm_judge,
    execute_fn     = execute_fn,
    valid_tables   = tables,
    valid_columns  = columns,
    weights        = WEIGHTS_V4,     # agentic ReAct profile
    pass_threshold = 0.6,
)

print(generate_report(results, format="markdown"))  # → PR comments
print(generate_report(results, format="json"))       # → artifacts

Metrics at a glance

🎯 Correctness

Execution accuracyExact matchMulti-gold SQLSemantic equivalenceResult similarity

✨ SQL Quality

LLM qualitySchema complianceComplexity matchScan efficiency

📚 Context (RAGAS)

PrecisionRecallEntity recallNoise robustness

💬 Response

FaithfulnessAnswer relevanceCompletenessFluency

🧠 Agentic

Steps efficiencySchema groundingPlanning qualityTool-use accuracyFirst-attempt success

🛡️ Safety

Read-onlySQL injectionPrompt injectionPII accessPII leakage

Weight profile	Metrics	Best for
WEIGHTS	15	Standard NL→SQL pipeline
WEIGHTS_V2	20	+ RAGAS context quality
WEIGHTS_V3	30	+ Guardrails + visualization
WEIGHTS_V4	28	+ Agentic quality (ReAct agents)
